Projetos dos Usuários: Pré-Amplificador HI-FI por Graham Maynard |
Pré-Amplificador
HI-FI por Graham Maynard / Northern Ireland
|
|

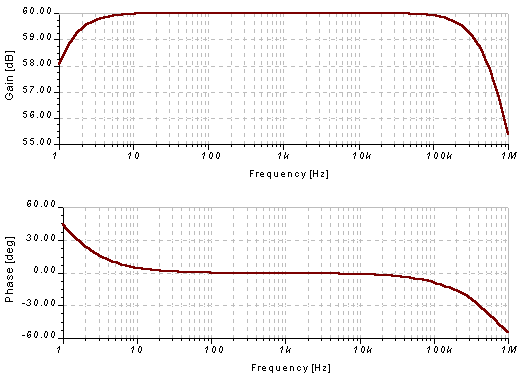

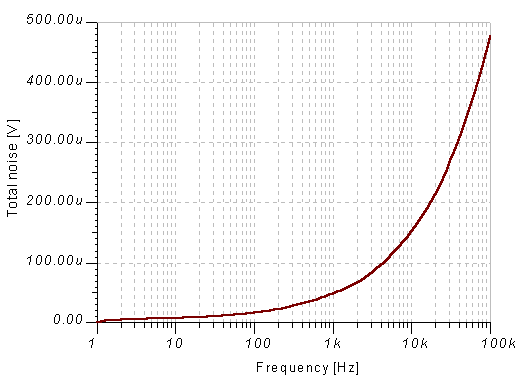

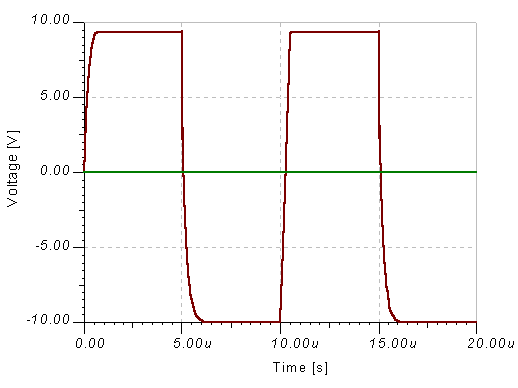

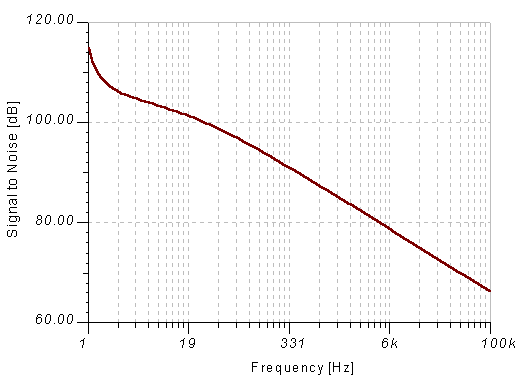

![]() The Preamp's Bode Response (resposta super plana) ![]() Squarewave Response with 100kHz Input Signal Applied ![]() Total Noise at Output Measured with 600R Load ![]() Signal to Noise Ratio at Output ![]() |
|
